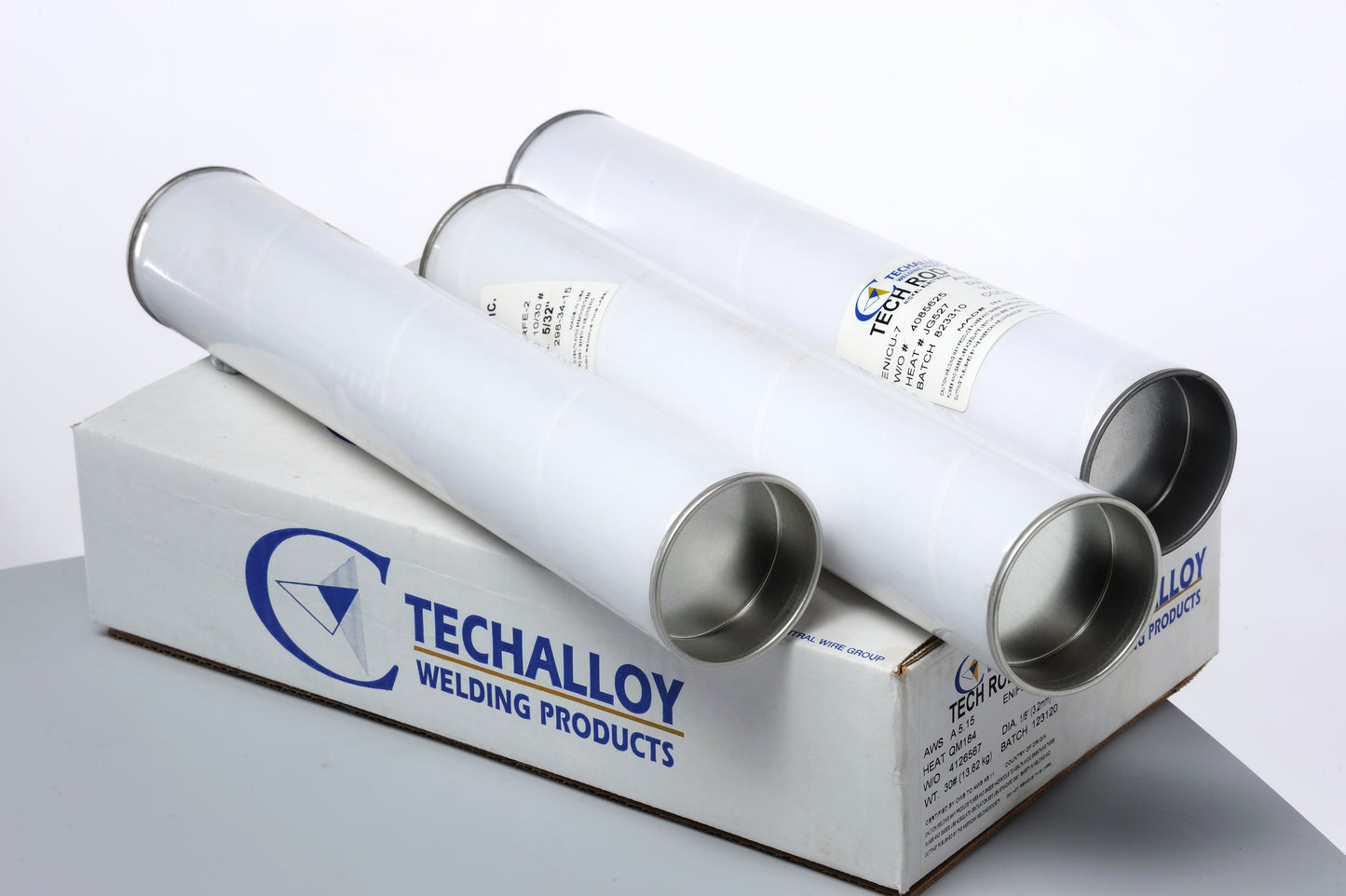

Tech-Rod 112 Electrodes
Tech-Rod 112 Electrodes
Brand: Techalloy
Classification: AWS A5.11 ENiCrMo-3| Product | Dia x Length (mm) | Weight per Pack (kgs) | Weight per Carton (kgs) |
|---|---|---|---|
| E11224S | 2.4 x 305 | 3.63 | 10.89 |
| E11232S | 3.2 x 355 | 4.54 | 13.62 |
| E11240S | 4.0 x 355 | 4.54 | 13.62 |
Tech-Rod 112 is a covered electrode which is used to weld nickel-chromium-molybdenum alloys. It is also used extensively in overlay cladding where similar chemical composition is required on the clad side. Its applications include dissimilar joints betweens nickel-chromium-molybdenum alloys to stainless steels, carbon or low alloy steels. These electrodes are used in applications where the temperature ranges from cryogenic up to 1800°F. The deposit chemistry is similar to a 625 solid wire.
Download Data Sheet (PDF)
