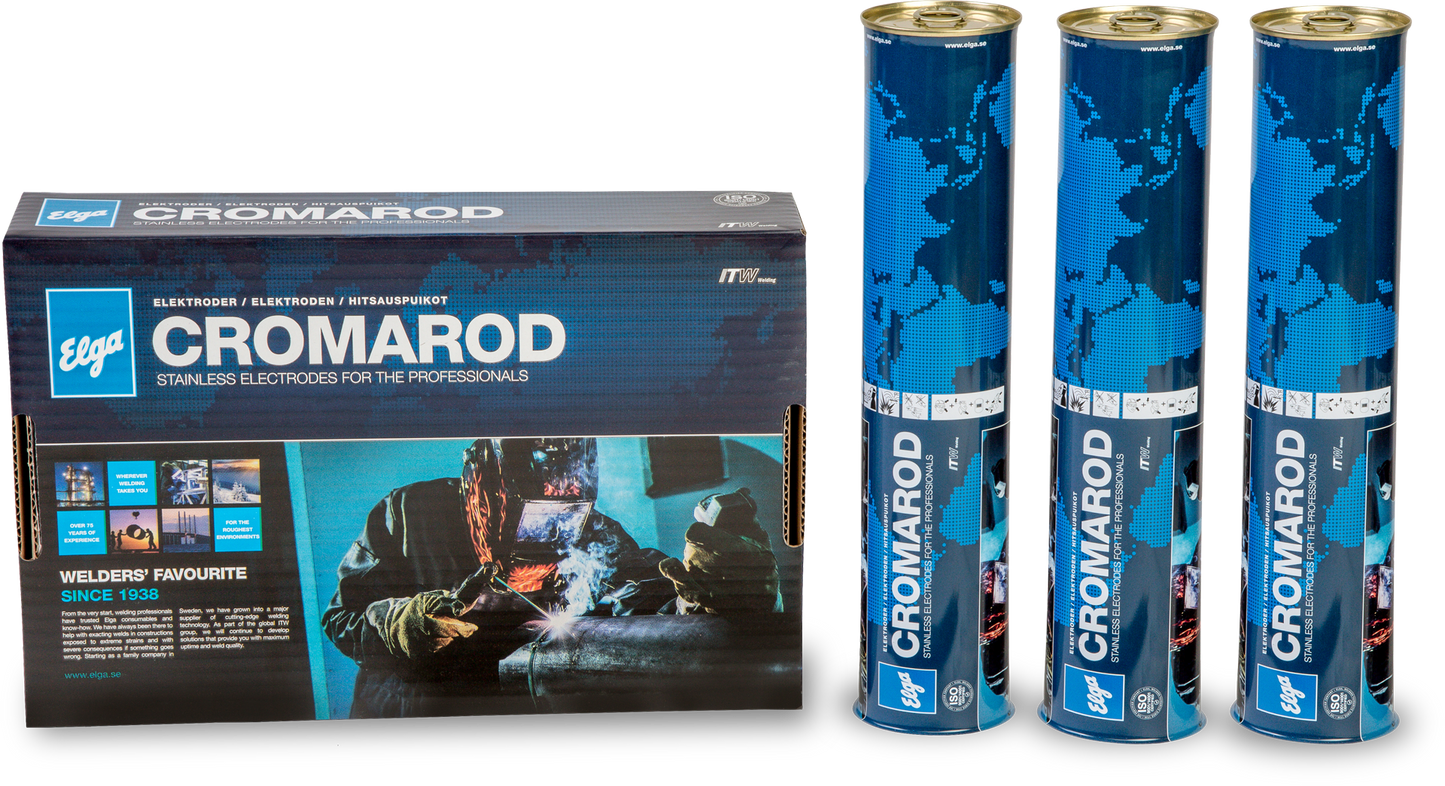

ELGA Cromarod 309MoL Electrodes
ELGA Cromarod 309MoL Electrodes
Brand: ELGA
Classification: AWS A5.4 E309MoL-17| Product | Dia x Length (mm) | Weight per Pack (kgs) | Weight per Carton (kgs) | Rods Per Pack |
|---|---|---|---|---|
| E309LMO20S | 2.00 x 300 | 3.00 | 9.00 | 251 |
| E309LMO25S | 2.50 x 300 | 2.50 | 7.50 | 135 |
| E309LMO32S | 3.20 x 350 | 3.00 | 9.00 | 84 |
| E309LMO40S | 4.00 x 350 | 3.00 | 9.00 | 56 |
Cromarod 309MoL is a rutile flux coated electrode which deposits a 23% Cr / 12%Ni / 2.5%Mo austenitic stainless steel weld metal. The high alloy content and ferrite level enable the weld metal to tolerate dilution from dissimilar and difficult-to-weld materials without hot cracking or brittle structures.
Download Data Sheet (PDF)
