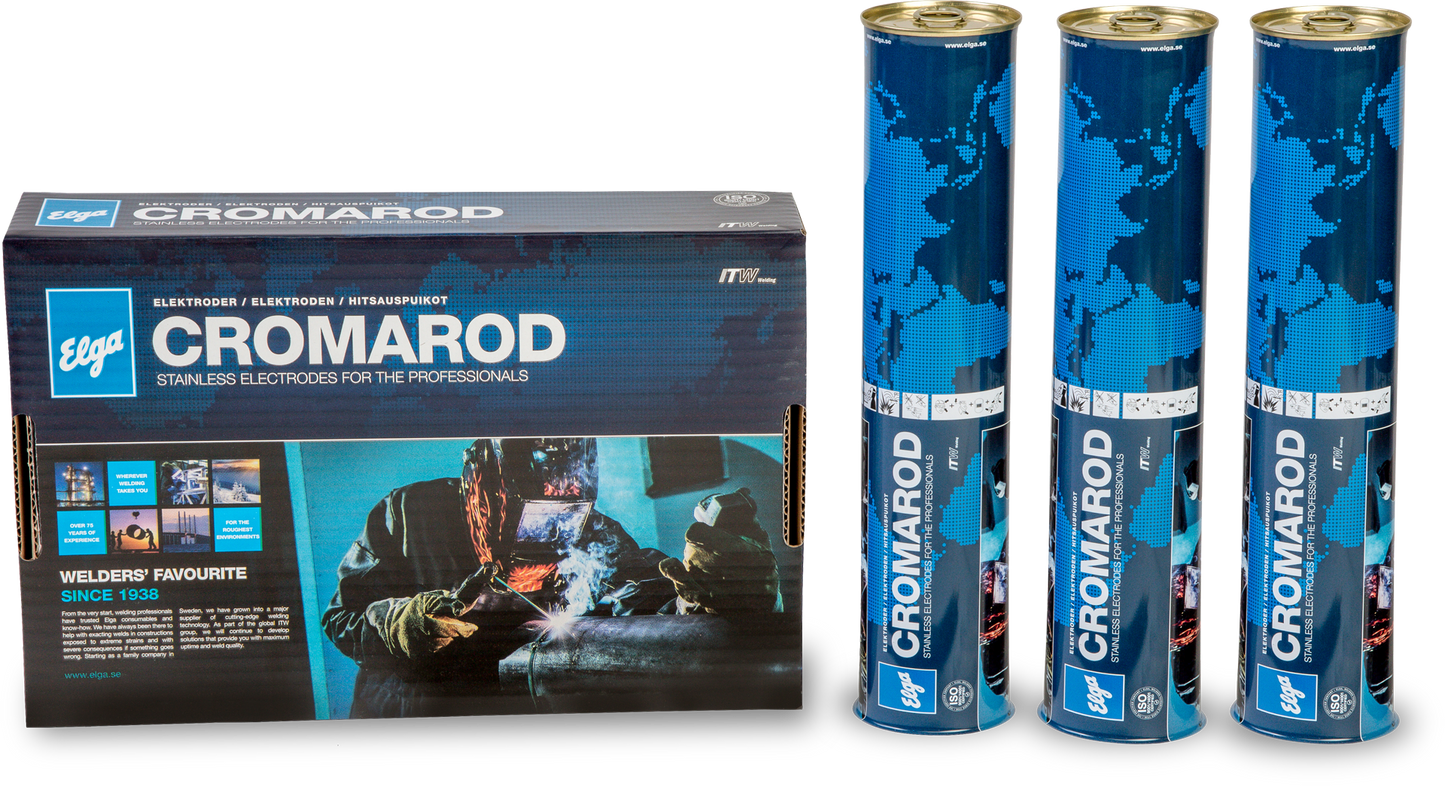

ELGA Cromarod 253 Stainless Steel Electrodes
ELGA Cromarod 253 Stainless Steel Electrodes
Brand: ELGA
Classification: EN ISO 3581 E 22 12 R 12| Product | Dia x Length (mm) | Weight per Pack (kgs) | Weight per Carton (kgs) | Rods Per Pack |
|---|---|---|---|---|
| E25325S | 2.50 x 300 | 2.50 | 7.50 | 141 |
| E25332S | 3.20 x 350 | 3.00 | 9.00 | 90 |
| E25340S | 4.00 x 350 | 3.00 | 9.00 | 59 |
Cromarod 253 is a special rutile flux coated electrode designed for high temperature stainless steels of similar composition used at temperatures up to 1150 °C. The electrode is made on a fully alloyed core wire and deposits a 0.06%C / 22%Cr / 10.5%Ni / 0.17%N weld metal, microalloyed with the rare earth metal cerium to give stable high temperature mechanical and oxidation properties. Cromarod 253 runs with a low spatter arc to produce a smooth weld bead finish, easy slag detachability and particularly good vertical-up operability.
Download Data Sheet (PDF)
