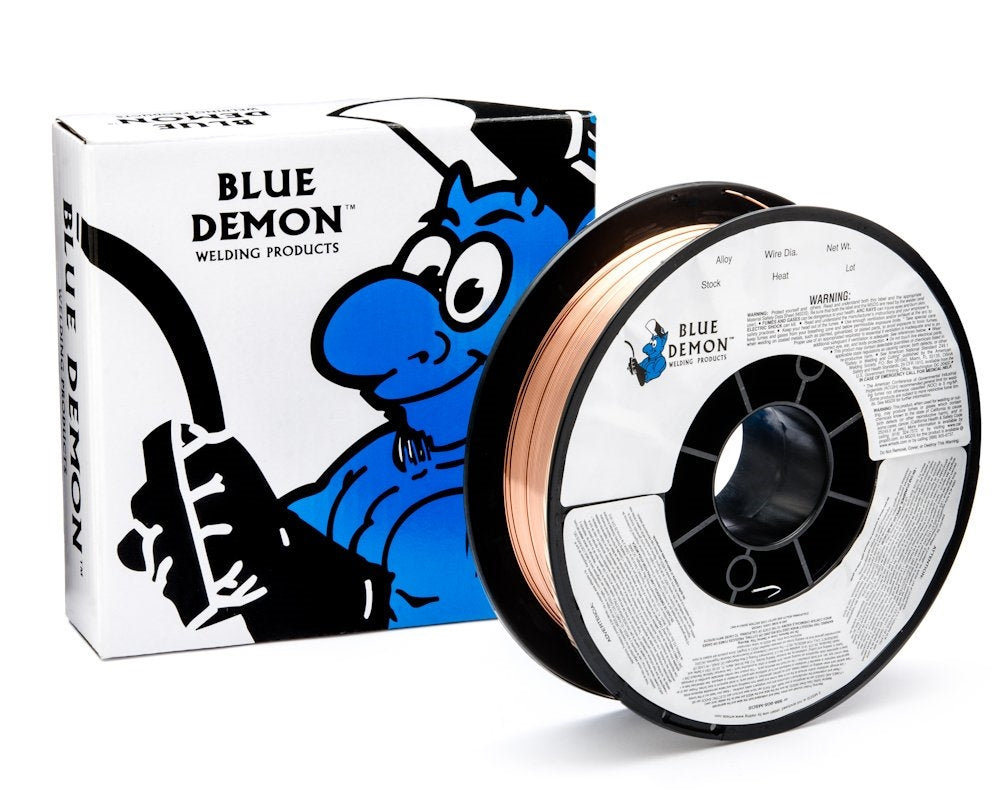

Blue Demon ER80S-D2 MIG Wire
Blue Demon ER80S-D2 MIG Wire
Brand: Blue Demon
Classification: AWS A5.28/A5.28M:2005 ER80S-D2| Product | Diameter (mm) | Weight per Spool (kgs) |
|---|---|---|
| M80SD208H | 0.80 | 5.00 |
| M80SD209H | 0.90 | 5.00 |
| M80SD209S | 0.90 | 15.00 |
| M80SD212S | 1.20 | 15.00 |
Blue Demon — ER80S-D2 is a wire which deposits a 0.5% Mo type weld metal.It is primarily intended for welding similar composition steels, used where creep rupture strength and ductility at service temperatures up to 550°C are required, e.g. DIN 15 Mo3, BS 3059 Grade 243 and ASTM A335 Grade P1. The Mo content confers some resistance to hydrogen attack in chemical process plant applications. ER80S-D2 is also suitable for ordinary C-Mn steels when higher tensile strength weld metal is required. The Mn content fulfils the AWS classification D2. Preheat and interpass temperature of 100-150°C is recommended. Stress relieve at 620°C.
